OVO Open API

Introduction

OVO Open API Activation

info

If you are personal seller, you can't use the OVO Open API due to the limitation from the OVO. Worry not! If you wish to receive payments from OVO, you can activate OVO Push Payment which enable you to receive payments from OVO.

Requirements

Client ID / Secret Key from OVO
DOKU account. To access DOKU API, you need DOKU client id & DOKU client key that you can find in DOKU back office.

Integration Flow

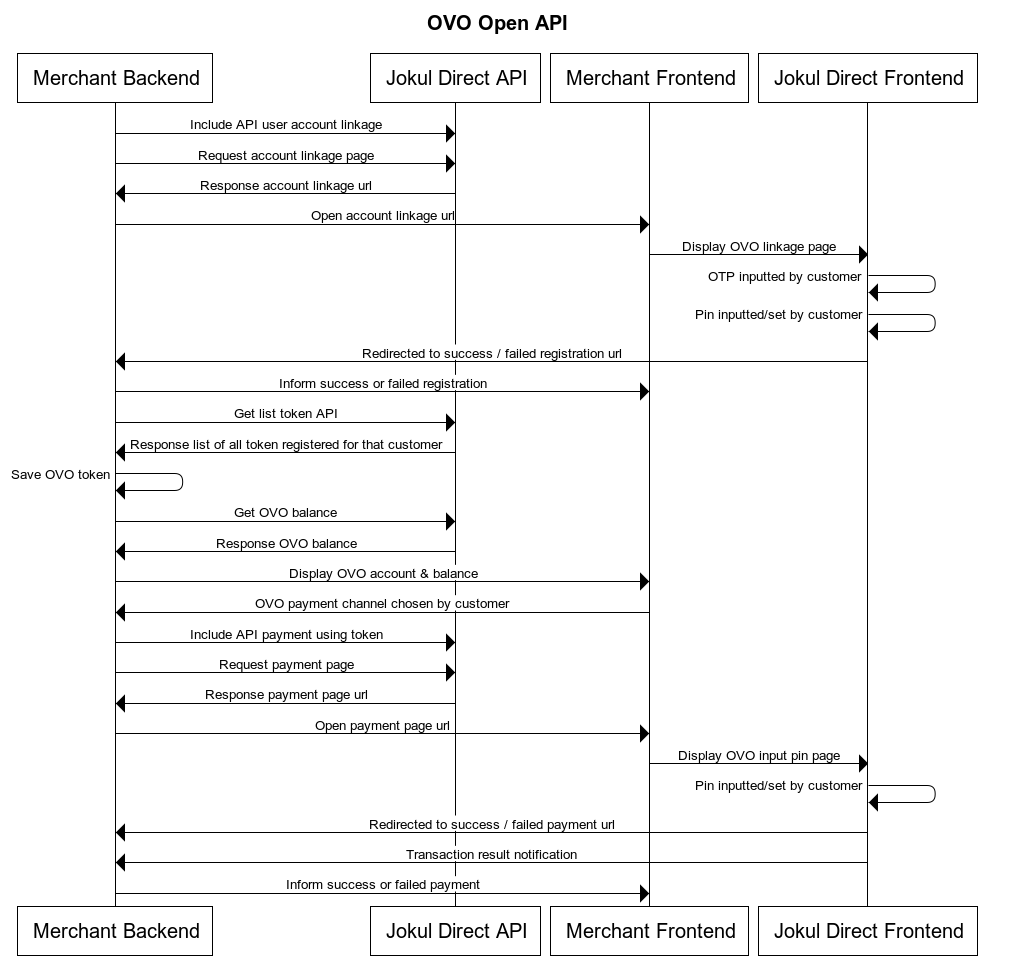

Here is the overview flow for OVO Open API :

Direct API - OVO Open API Sequence Diagram

API list

Here is the sample of request header to implement every API list below :

Client-Id: MCH-0001-10791114622547
Request-Id: 15022aab-444f-4b04-afa8-ddfce89432ec
Request-Timestamp: 2020-08-11T08:45:42Z
Signature: HMACSHA256=vl9DBTX5KhEiXmnpOD0TSm8PYQknuHPdyHSTSc3W6Ps=

Request Header Explanation

Parameter	Description
Client-Id	Client ID retrieved from DOKU Back Office
Request-Id	Unique random string (max 128 characters) generated from merchant side to protect duplicate request
Request-Timestamp	Timestamp request on UTC time in ISO8601 UTC+0 format. It means to proceed transaction on UTC+7 (WIB), merchant need to subtract time with 7. Ex: to proceed transaction on September 22th 2020 at 08:51:00 WIB, the timestamp should be 2020-09-22T01:51:00Z
Signature	Security parameter that needs to be generated on merchant Backend and placed to the header request to ensure that the request is coming from valid merchant. Please refer to this section to generate the signature

Merchant and DOKU must validate signature in API list, see how to generate signature. You can refer to Generate Signature.

User Account Linkage

Merchant can binding OVO account to customer id, each OVO account can only binding to one customer on one merchant. Customer need to verify OTP and input PIN on OVO page.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	`https://api-sandbox.doku.com/ovo-open-api/v1/token`
API endpoint (Production)	`https://api.doku.com/ovo-open-api/v1/token`

Here is the sample of request body to binding OVO account to customer id :

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA",
        "phone": "087872180555",
        "email": "test@gmail.com",
        "additional_info": "None"
    },
    "ovo_account": {
        "account_mobile_phone": "6287872180555",
        "success_registration_url": "https://www.wtdteam.com/success",
        "failed_registration_url": "https://www.wtdteam.com/failed"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant customer id
`customer.name`	`string (70)`	Optional	Customer name
`customer.email`	`string (255)`	Optional	Customer email
`customer.phone`	`string (20)`	Optional	Customer phone number
`customer.additional_info`	`string (20)`	Optional	Customer additional info
`ovo_account.account_mobile_phone`	`string (20)`	Mandatory	Register phone number on OVO
`ovo_account.success_registration_url`	`string (2048)`	Mandatory	URL for direct page after success register
`ovo_account.failed_registration_url`	`string (2048)`	Mandatory	URL for direct page after failed register

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

Here is the sample of response body:

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA",
        "phone": "087872180555",
        "email": "test@gmail.com",
        "additional_info": "None"
    },
    "ovo_account": {
        "registration_url": "https://jokul.doku.com/ovo-open-api/registration/sessionId/27817263817263817",
        "status": "PENDING"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant customer id
`customer.name`	`string (70)`	Optional	Customer name
`customer.email`	`string (255)`	Optional	Customer email
`customer.phone`	`string (20)`	Optional	Customer phone number
`customer.additional_info`	`string (20)`	Optional	Customer additional info
`ovo_account.account_mobile_phone`	`string (20)`	Mandatory	Register phone number on OVO
`ovo_account.registration_url`	`string (2048)`	Mandatory	URL from DOKU for Customer to binding their account
`ovo_account.status`	`string`	Mandatory	Always `PENDING` for Successfull token request (waiting for OTP verification & PIN vervification)

Get List Token (OVO)

After successful account linkage, merchant can get OVO token that can be used for that customer to payment using OVO. Token is created by DOKU, and valid for 1 year.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	`https://api-sandbox.doku.com/tokenization/v1/tokens`
API endpoint (Production)	`https://api.doku.com/tokenization/v1/tokens`

Here is the sample of request body to get Token for OVO :

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU"
    },
    "token_data": {
        "type": "WALLET"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Customer id that already have active token
`token_data.type`	`string`	Optional	`DIRECT_DEBIT` / `CREDIT_CARD` / `WALLET`, if not specified get all payment channel token

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	200
Result	SUCCESS

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA"
    },
    "token_data": {
        "type": "WALLET"
    },
    "wallet": {
        "issuer": "OVO",
        "token_id": "fc72c4b0aedff916ab92e39cb80d3675",
        "masked_phone_number": "****1454"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant customer id
`customer.name`	`string (70)`	Optional	Customer name
`token_data.type`	`string`	Mandatory	Token Type : CREDIT CARD, DIRECT DEBIT , or WALLET
`wallet.issuer`	`string (255)`	Mandatory	Issuer for wallet binding
`wallet.token_id`	`string (128)`	Mandatory	Token generated by DOKU
`wallet.masked_phone_number`	`string (8)`	Mandatory	Phone number masked

Get Account Balance

This balance check API allows users to check their latest OVO balance. The user should be able to access their balance at any time so they can make accurate and up to date decision regarding their transactions.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	`https://api-sandbox.doku.com/ovo-open-api/v1/balance`
API endpoint (Production)	`https://api.doku.com/ovo-open-api/v1/balance`

Here is the sample of request body to get balance for OVO :

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU"
    },
    "ovo_account": {
        "token_id": "fc72c4b0aedff916ab92e39cb80d3111"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (64)`	Mandatory	Customer id that already have active token
`ovo_account.token_id`	`string (128)`	Mandatory	Token generated by DOKU

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA",
        "phone": "087872180555",
        "email": "test@gmail.com",
        "additional_info": "None"
    },
    "ovo_account": {
        "ovo_cash_balance": "100000",
        "ovo_point_balance": "100000"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant customer id
`customer.name`	`string (70)`	Optional	Customer name
`customer.email`	`string (255)`	Optional	Customer email
`customer.phone`	`string (20)`	Optional	Customer phone number
`customer.additional_info`	`string (20)`	Optional	Customer additional info
`ovo_account.ovo_cash_balance`	`number (10)`	Mandatory	OVO Cash Balance
`ovo_account.ovo_point_balance`	`number (10)`	Mandatory	OVO Point Balance

Payment Using Token

Payment using OVO token from OVO cash balance or/and OVO point balance. When OVO have program for payment using OVO point, customer can paying using OVO point balance on merchant. Payment using mixed OVO point and OVO cash, OVO point will be deducted first and the remaining will be deducted from OVO cash. Customer need to verify payment by input PIN on OVO page.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	`https://api-sandbox.doku.com/ovo-open-api/v1/payment`
API endpoint (Production)	`https://api.doku.com/ovo-open-api/v1/payment`

Here is the sample of request body to do payment using OVO Token :

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA",
        "phone": "087872180555",
        "email": "test@gmail.com",
        "additional_info": "None"
    },
    "additional_info": {
    },
    "order": {
        "invoice_number": "MINV20201231468",
        "line_items": [
            {
                "name": "bola",
                "price": 10000,
                "quantity": 1
            },
            {
                "name": "ubi",
                "price": 5000,
                "quantity": 1
            }
        ],
        "amount": 15000
    },
    "ovo_account": {
        "token_id":"bcdbcdbcdbcbdbcdb-bcdbcd-bcdbcdb",
        "payment_use_ovo_point": false,
        "success_payment_url": "https://www.wtdteam/success",
        "failed_payment_url": "https://www.wtdteam/failed"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant customer id
`customer.name`	`string (70)`	Optional	Customer name
`customer.email`	`string (255)`	Optional	Customer email
`customer.phone`	`string (20)`	Optional	Customer phone number
`customer.additional_info`	`string (20)`	Optional	Customer additional info
`additional_info`	`Json`	Optional	additional info
`order.invoice_number`	`string (32)`	Mandatory	Merchant transaction id unique per client id, only accept alphanumeric, _ and - Min length is 3, max length is 32
`order.line_items.name`	`string`	Optional	Privacy concern so optional, but if send will help our risk engine
`order.line_items.price`	`number`	Optional	Privacy concern so optional, but if send will help our risk engine
`order.line_items.quantity`	`number`	Mandatory	Privacy concern so optional, but if send will help our risk engine
`order.amount`	`number (10)`	Mandatory	Converted total amount.
`ovo_account.token_id`	`string (128)`	Mandatory	OVO E-Wallet Token
`ovo_account.payment_use_ovo_point`	`string (5)`	Optional	Default false, if True will use all OVO Point first before use OVO Cash
`ovo_account.success_payment_url`	`string (2048)`	Mandatory	URL for direct page after success payment
`ovo_account.failed_payment_url`	`string (2048)`	Mandatory	URL for direct page after failed payment

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA",
        "phone": "087872180555",
        "email": "test@gmail.com",
        "additional_info": "None"
    },
    "additional_info": {
    },
    "order": {
        "invoice_number": "MINV20201231468",
        "line_items": [
            {
                "name": "bola",
                "price": 10000,
                "quantity": 1
            },
            {
                "name": "ubi",
                "price": 5000,
                "quantity": 1
            }
        ],
        "amount": 15000
    },
    "payment": {
        "ovo_payment_url": "https://jokul.doku.com/ovo-open-api/payment/sessionId/27817263817263817263817",
        "status": "PENDING"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant customer id
`customer.name`	`string (70)`	Optional	Customer name
`customer.email`	`string (255)`	Optional	Customer email
`customer.phone`	`string (20)`	Optional	Customer phone number
`customer.additional_info`	`string (20)`	Optional	Customer additional info
`additional_info`	`Json`	Optional	additional info
`order.invoice_number`	`string (32)`	Mandatory	Merchant transaction id unique per client id, only accept alphanumeric, _ and - Min length is 3, max length is 32
`order.line_items.name`	`string`	Optional	Privacy concern so optional, but if send will help our risk engine
`order.line_items.price`	`number`	Optional	Privacy concern so optional, but if send will help our risk engine
`order.line_items.quantity`	`number`	Mandatory	Privacy concern so optional, but if send will help our risk engine
`order.amount`	`number (10)`	Mandatory	Converted total amount.
`payment.ovo_payment_url`	`string (255)`	Mandatory	url from DOKU for customer to input pin for transaction
`ovo_account.payment_use_ovo_point`	`string (5)`	Optional	Default false, if True will use all OVO Point first before use OVO Cash
`payment.status`	`string`	Mandatory	URL for direct page after success payment
`ovo_account.failed_payment_url`	`string (2048)`	Mandatory	PENDING for successful token request (waiting for OTP verification) / SUCCESS if not need OTP, TOKEN_EXPIRED (need to input PIN twice and still can proceed to transaction)

Refund

Refund OVO transaction. For payment using mixed OVO cash and OVO point, OVO point will be refunded first.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	`https://api-sandbox.doku.com/ovo-open-api/v1/payment-refund`
API endpoint (Production)	`https://api.doku.com/ovo-open-api/v1/payment-refund`

Here is the sample of request body to do refund for OVO Transaction :

{
    "order": {
        "invoice_number": "MINV20201231468"
    },
    "payment": {
        "original_request_id": "82014"
    },
    "refund": {
        "amount": 1000,
        "reason": "Cancel Order"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`order.invoice_number`	`string (32)`	Mandatory	Invoice number of the transaction that being refunded, same as the request payment
`payment.original_request_id`	`string (128)`	Mandatory	Request ID from Payment Initiation of the transaction that being refunded
`refund.amount`	`number`	Mandatory	Transaction amount that wants to be refunded
`refund.reason`	`string (255)`	Optional	Reason refund

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

{
    "order": {
        "invoice_number": "MINV20201231468"
    },
    "payment": {
        "original_request_id": "82014"
    },
    "refund": {
        "amount": 1000,
        "reason": "Cancel Order",
        "status": "SUCCESS",
        "message": "SUCCESS"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`order.invoice_number`	`string (32)`	Mandatory	Same as the request
`payment.original_request_id`	`string (128)`	Mandatory	Same as the request
`refund.amount`	`number`	Mandatory	Amount to be refunded
`refund.reason`	`string (255)`	Optional	Reason refund
`refund.status`	`string`	Mandatory	SUCCESS / FAILED
`refund.message`	`string (10)`	Optional	Reason if failed refund

Unbind Linked Account

Customer should always have option to unlink their OVO account from any merchant.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	`https://api-sandbox.doku.com/ovo-open-api/v1/token-delete`
API endpoint (Production)	`https://api.doku.com/ovo-open-api/v1/token-delete`

Here is the sample of request body to unlink their OVO Account :

{
    "customer": {
        "id": "TEST-CIMBXDOKU-05",
        "name": "DOKUXCIMB"
    },
    "ovo_account": {
        "token_id": "1614dc147e404f41f6d2de877fda1f94"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant id
`customer.name`	`string (50)`	Mandatory	Merchant name
`ovo_account.token_id`	`string (128)`	Mandatory	Token created from register ovo account that owned by this customer id

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

{
    "customer": {
        "id": "TEST-CIMBXDOKU-05",
        "name": "DOKUXCIMB"
    },
    "ovo_account": {
        "token_id": "1614dc147e404f41f6d2de877fda1f94",
        "status": "SUCCESS",
        "message": "Success Unbiding OVO Account"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`customer.id`	`string (50)`	Mandatory	Merchant id
`customer.name`	`string (50)`	Mandatory	Merchant name
`ovo_account.token_id`	`string (128)`	Mandatory	Token created from register ovo account that owned by this customer id
`ovo_account.status`	`string`	Mandatory	DELETED Token
`ovo_account.message`	`string`	Optional	SUCCESS unbind token_id from customer

Technical Reference

Payment Notification

Guide how to handle payment notification can refer to Handling HTTP Notification.

Handling Idempotent Request

Idempotency is a concept where a request can be sent multiple times with the same result as the first request, that means the system only performs one process for identical requests.

The examples below illustrate how idempotency is works.

Two Request, Connectivity Lost

Situation:

T0: Partner sends a payment request to DOKU T1: DOKU server receives this request and processes it successfully. With response http status 200 T2: Partner's server loses power prior to receiving the response in T1. T3: Partner's server power is restored and the same payment request is sent with all the same parameters (same request-ID and request details but updated requestTimestamp) to the DOKU server.

Outcome:

In this case the DOKU server reply with the same reply given at T1 since all the parameters, except for responseTimestamp, are the same. The user is only debited once, at T0. T3 has no monetary impact to the user.

Please note

DOKU reply http status 409 (CONFLICT) with same response if any potential loss for DOKU or Partner. For example, when process transaction if merchant can't handle properly idempotency response, and probably they will define as another success order.

List of Error Code

Error message	Error Code	HTTP Status Code	Explanation
FAILED	`0021`	200	Failed After check status to ovo, executed by system scheduler
Invalid Header Signature	`invalid_signature`	400	Invalid Signature
Idempotent Request	`idempotent_request`	400	Double request with same request id under 20 second
ovo account not available please register to ovo	`account_error`	400	OVO account not found
customer id must not be empty	`invalid_parameter`	400	Not input object customer id (applied to every mandatory parameter)
attribute customer id must not bigger than 50 character(s)	`invalid_parameter`	400	Object customer id > 50 character (applied to every parameter that more than data type max length)
email format must be valid	`invalid_parameter`	400	Invalid format in customer email
account mobile phone format must be 62xxxx	`invalid_parameter`	400	Invalid format in Account mobile phone number
invalid url for attribute success registration url	`invalid_parameter`	400	Invalid format in success registration url
invalid url for attribute failed registration url	`invalid_parameter`	400	Invalid format in failed registration url
attribute refund reason must not bigger than 255 character(s)	`invalid_parameter`	404	Object refund reasong > 255 character (applied to every parameter that more than data type max length)
invalid token_id	`invalid_parameter`	401	Invalid token id
Customer change phone number on OVO Platform	`account_error`	400	Customer change phone number on OVO Platform, please proceed to unbind linked account
charge payment failed	`account_error`	400	Charge payment failed
High risk transaction	`re_error`	400	High risk transaction
attribute account_mobile_phone must be 10-20 digits	`invalid_parameter`	400	account_mobile_phone not in valid range 10 - 20 digits
something wrong in OVO	`account_error`	400	Something wrong in OVO system please contact DOKU team
exceeds attempt limit, not allowed request otp for 30min	`account_error`	400	Exceeds OTP request limit for this account_mobile_phone
transaction not found	`account_error`	400	Refund can't be processed, transaction not yet done / not found
ovo account already registered	`invalid_access`	401	OVO is already registered to other customer
token not found	`not_found`	404	Token ID not found
Given customer token not match with saved customer token	`not_found`	404	Customer token not match with saved customer id merchant
Customer not found on Merchants Customer List	`not_found`	404	Customer not found
Original transaction not found	`not_found`	404	Original payment not found
refund amount is greater than paid amount	`account_error`	400	Refund amount greater than paid amount
merchant not found	`not_found`	404	Merchant not found
failed after 1 hour(s)	`0001`	404	Payment failed after 1 hour, assumption : Customer didnt continue payment on ovo, executed by system scheduler
customer id already used	`invalid_access`	401	customer id already used
OVO account blocked temporary	`account_error`	400	OVO account blocked temporary
transaction not found in OVO	`account_error`	400	transaction not found in OVO
invoice_number already exist	`invalid_access`	401	invoice_number already exist
customer id not found	`not_found`	404	customer id not found
Given invoice number not match with saved invoice number	`invalid_access`	401	Given invoice number not match with saved invoice number
Given invoice number to be refunded does not belong to the merchant	`invalid_access`	401	Given invoice number to be refunded does not belong to the merchant

Explore the New API Documentation!

Introduction​

OVO Open API Activation​

info

Requirements​

Integration Flow​

API list​

User Account Linkage​

API Request​

API Response​

Get List Token (OVO)​

API Request​

API Response​

Get Account Balance​

API Request​

API Response​

Payment Using Token​

API Request​

API Response​

Refund​

API Request​

API Response​

Unbind Linked Account​

API Request​

API Response​

Technical Reference​

Payment Notification​

Handling Idempotent Request​

Please note

List of Error Code​

Introduction

OVO Open API Activation

Requirements

Integration Flow

API list

User Account Linkage

API Request

API Response

Get List Token (OVO)

API Request

API Response

Get Account Balance

API Request

API Response

Payment Using Token

API Request

API Response

Refund

API Request

API Response

Unbind Linked Account

API Request

API Response

Technical Reference

Payment Notification

Handling Idempotent Request

List of Error Code
